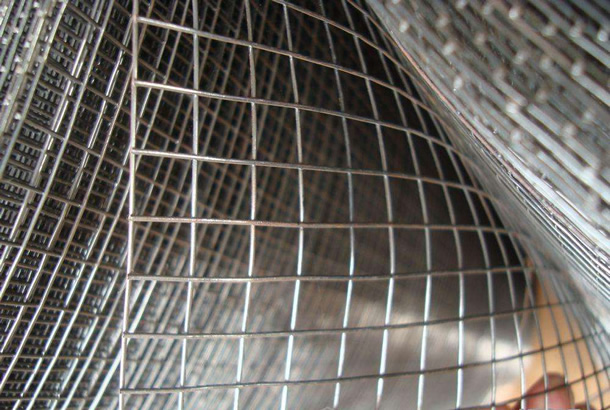

Welded wire mesh is fabricated from a series of wires arranged at right angle to each other and electrically welded at all intersections.

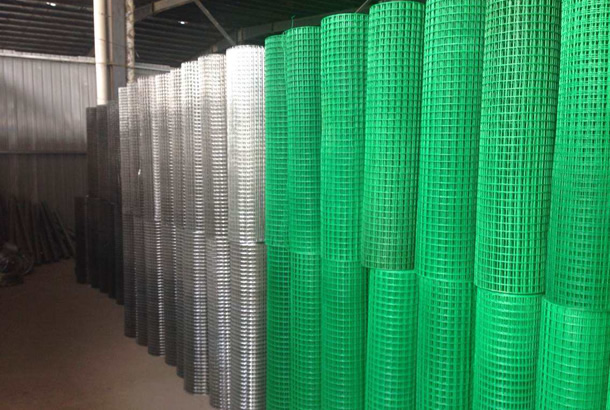

Types of welded wire mesh: galvanized welded wire mesh, stainless steel welded wire mesh and pvc coated welded wire mesh. Can be supplied in rolls or panels or pieces.
Material: Low carbon steel wire, stainless steel wire.
Weaving and characteristics:
- Hot dipped galvanizing after weaving
- Weaving with hot dipped galvanized iron wire
- Electric galvanizing after weaving
- Weaving with electric galvanized iron wire

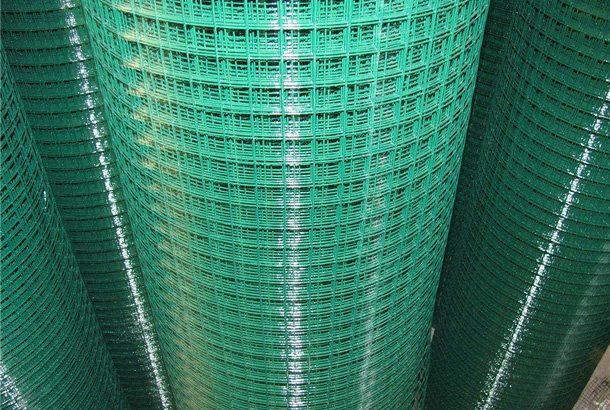

- PVC coated welded wire mesh
Welded wire mesh is used in industry, agriculture, building, transportation, mining, fence.fishing, poultry, egg baskets and so on welded wire mesh available in rolls and panels that could be made of high quality low carbon steel wire through automatic digital controlled welding equipments.
Specification List of Welded Wire Mesh
| Specification List of Welded Wire Mesh | ||
| Opening | Wire Diameter<BWG> | |
| In inch | In metric unit(mm) | |
| 1/4" x 1/4" | 6.4mm x 6.4mm | 22,23,24 |
| 3/8" x 3/8" | 10.6mm x 10.6mm | 19,20,21,22 |
| 1/2" x 1/2" | 12.7mm x 12.7mm | 16,17,18,19,20,21,22,23 |
| 5/8" x 5/8" | 16mm x 16mm | 18,19,20,21, |
| 3/4" x 3/4" | 19.1mm x 19.1mm | 16,17,18,19,20,21 |
| 1" x 1/2" | 25.4mm x 12.7mm | 16,17,18,19,20,21 |
| 1-1/2" x 1-1/2" | 38mm x 38mm | 14,15,16,17,18,19 |
| 1" x 2" | 25.4mm x 50.8mm | 14,15,16 |
| 2" x 2" | 50.8mm x 50.8mm | 12,13,14,15,16 |
